Product Description

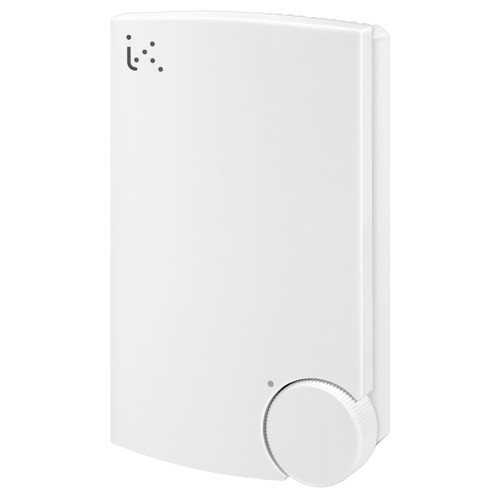

Ctr-X/D Controllers With Pi Control 230...400 V Ac Wall Mounting P12160
Electric Heating Controller Power Supply: 210...415 Vac 50/60Hz
Control Signal 0...10Vdc
Output : Max 16A, Min 1A Max 3,6Kw, Min 230W
At 230Vca
Max 6,4Kw, Min 400W, At 400Vac
Power Emission: 20W At Full Load
Work Condition: 0...30°C, 90%.R.H. No Condensation
Protection: Ip20
The CTR-X/D Controllers with PI Control 230-400 V AC wall mounting P12160 is a reliable and efficient electric heating controller suitable for a range of applications. This versatile controller operates on a power supply of 210-415 Vac 50/60Hz, providing a stable performance. With a control signal range of 0-10Vdc, users have precise control over the heating output.
Equipped with a maximum output of 16A and minimum of 1A, this controller can handle a maximum power of 3.6kW at 230Vac and 6.4kW at 400Vac. The power emission is optimized at 20W under full load, ensuring energy efficiency. Operating within a temperature range of 0-30°C and 90% relative humidity without condensation, the CTR-X/D controller is built to deliver consistent performance in varied environments.
With IP20 protection, this controller offers safety and durability for long-term use. The CTR-X/D Controllers with PI Control P12160 is a dependable solution for heating control applications, offering precision, power, and reliability in a wall-mounting design.
